Medical gas terminal box

Overview

Product overview

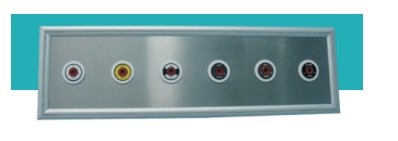

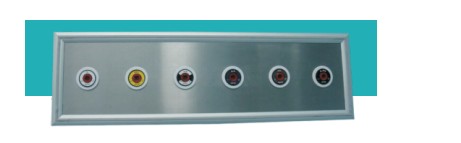

The medical gas terminal box is a gas supply terminal device specially designed for the operating room. The body is made of steel electrostatic spray and the panel is stainless steel.

Product selection

1. The terminal is classified by gas

Oxygen 02, Compressed air MA4, Carbon dioxide CO2, nitrogen N2, Vacuum VAC.

2. The terminal standard is divided into: national standard, German standard and American standard.

Installation procedure

1. Install the terminal bottom box on the wall panel that has been opened in advance

2. Connect the gas pipe.

3. Install the top cover and close the mouth.

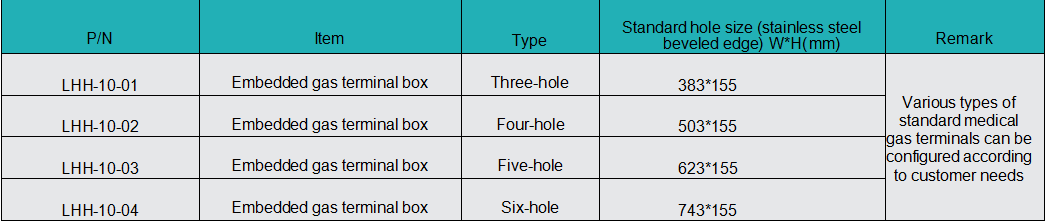

Parameters

* The same product model may have multiple versions. There may be differences between different versions of products (including functional parameters, LOGO design, appearance details, product information, etc.). Please refer to the actual product.
